| Picture No | Name Of Material |

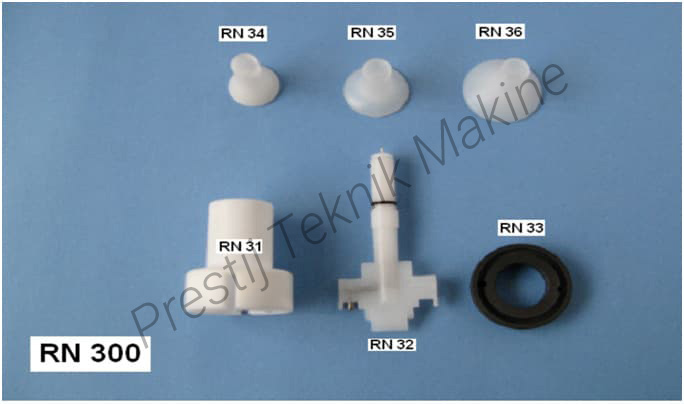

| RN 300 | Deflector Nozzle Set (Picture 1-2-3-5) |
| RN 31 | Deflector Nozzle |
| RN 32 | Deflector Elektrod Group (All) |
| RN 33 | Contact Ring |
| RN 34 | Deflector 16 mm |
| RN 35 | Deflector 20 mm |
| RN 36 | Deflector 25 mm |
| Picture No | Name Of Material |

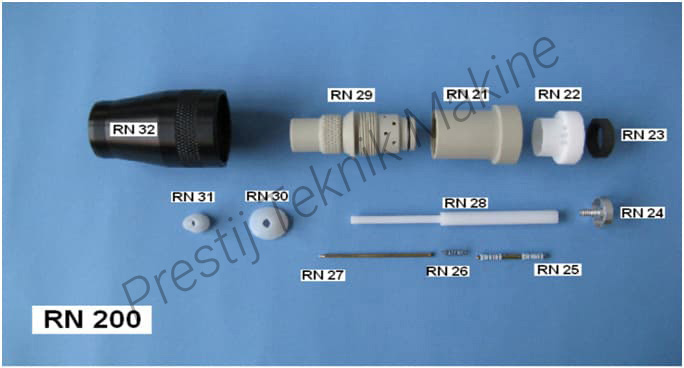

| RN 200 | Deflector Nozzle Set (Picture 21-30) |
| RN 21 | Elektrode External Sheath |
| RN 22 | Preloading Electrode |
| RN 23 | Carbon Ring |
| RN 24 | Preloading Electrode |
| RN 25 | Elektrode Resistance Bar |
| RN 26 | Spring |
| RN 27 | Deflector Hv Conduction Bar |
| RN 28 | Deflector Bar |
| RN 29 | Elektrod Inner Sheath |
| RN 30 | Deflector 20 mm |
| RN 31 | Deflector 12 mm |
| RN 32 | Elektrode Nut |
| Picture No | Name Of Material |

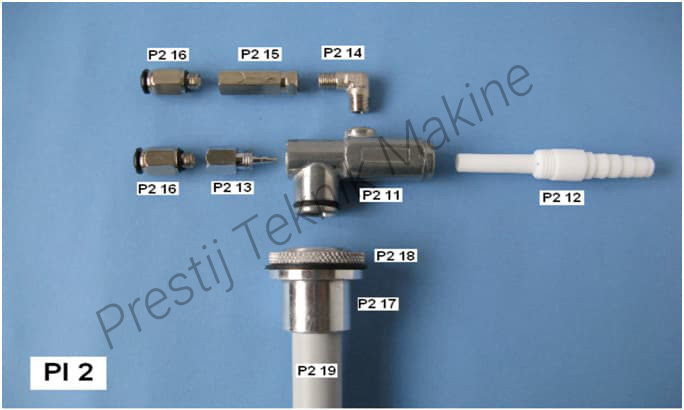

| PI 2 | Powder Paint Injector (Picture 11-16) |
| P2 11 | Injector Body |
| P2 12 | Injector Sleeve |
| P2 13 | Injector Nozzle |
| P2 14 | Elbow |
| P2 15 | Check Valve |
| P2 16 | Sleeve |
| P2 17 | Injector Holder |
| P2 18 | Nut |
| P2 19 | Paint Transfer Tube (50 cm) |
| Picture No | Name Of Material |

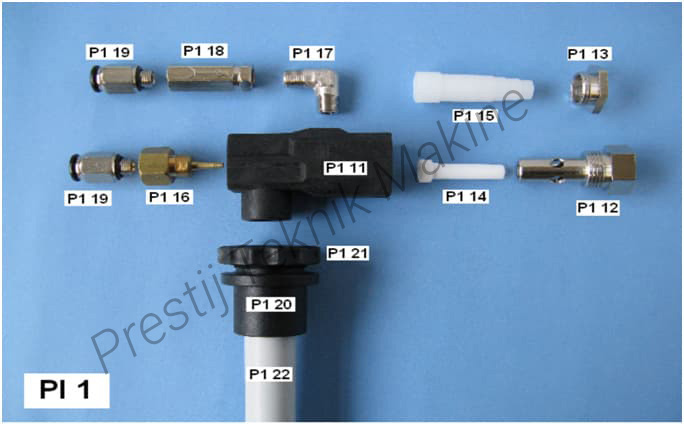

| PI 1 | Powder Paint Injector (Picture 11-19) |
| P1 11 | Injector Body |
| P1 12 | Sleeve Holder |
| P1 13 | Compression Nut |
| P1 14 | Injector Sleeve |
| P1 15 | Paint Outlet Part |
| P1 16 | Injector Nozzle |
| P1 17 | Elbow |
| P1 18 | Check Valve |
| P1 19 | Sleeve |
| P1 20 | Injector Holder |
| P1 21 | Nut |
| P1 22 | Paint Transfer Tube (50 cm) |
| Picture No | Name Of Material |

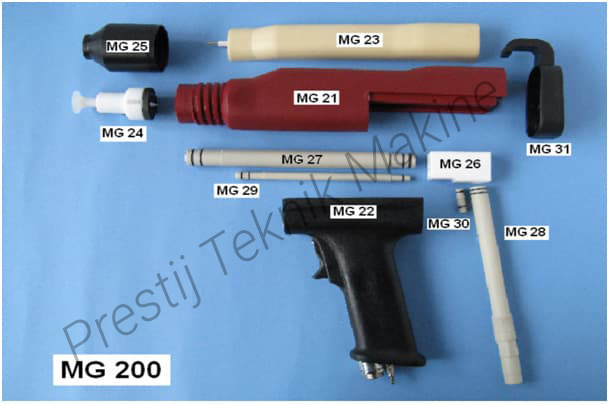

| MG 200 | Manual Powder Paint Gun (All) |
| MG 21 | Gun Body (New Model) |
| MG 22 | Gun Grip (All) |
| MG 22-1 | Microswitch |
| MG 22-2 | Trigger |
| MG 22-3 | 4m Plug Connection |
| MG 22-4 | Vortex Connection Needle |
| MG 23 | Cascade |
| MG 24 | Deflector Nozzle Set RN300 (All) |
| MG 25 | Compression Nut N300 |
| MG 26 | Elbow |
| MG 27 | Paint Outlet Tube |
| MG 28 | Paint Inlet Tube |
| MG 29 | Vortex Outlet Tube |
| MG 30 | Vortex Inlet Tube |
| MG 31 | Manual Back Cover |
| Picture No | Name Of Material |

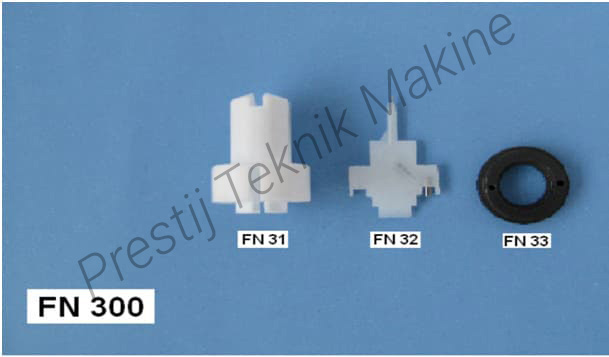

| FN 300 | Flat Nozzle Set (All) |
| FN 31 | Flat Nozzle |
| FN 32 | Flat Electrode |
| FN 33 | Contact Ring |
| Picture No | Name Of Material |

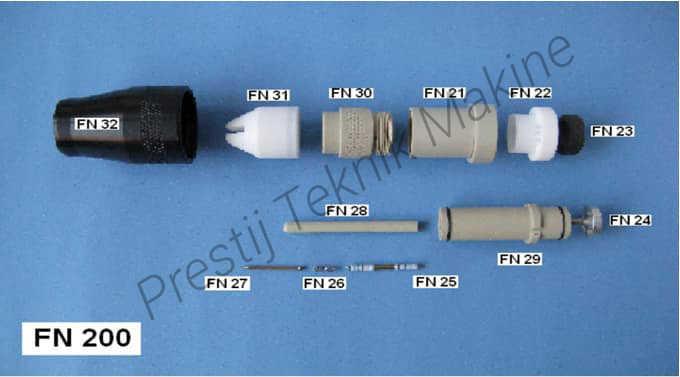

| FN 200 | Flat Nozzle Set (Picture 21-31) |
| FN 21 | Elektrode External Sheath |
| FN 22 | Preloading Electrode |
| FN 23 | Carbon Ring |
| FN 24 | Preloading Electrode |
| FN 25 | Elektrode Resistance Bar |
| FN 26 | Spring |
| FN 27 | Flat Hv Conduction Bar |
| FN 28 | Flat Bar |
| FN 29 | Flat Internal Bar |
| FN 30 | Flat Sheath Nut |
| FN 31 | Flat Spray |
| FN 32 | Elektrode Nut |
| Picture No | Name Of Material |

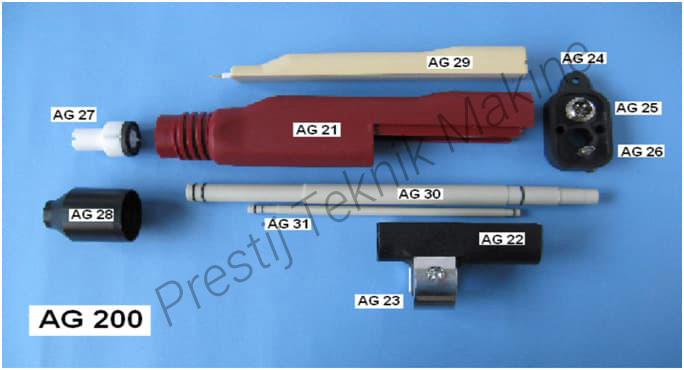

| AG 200 | Automatic Powder Coating Gun (All) |
| AG 21 | Gun Body (New Model) |
| AG 22 | Automatic Lower Cover |
| AG 23 | Support Connection |
| AG 24 | Automatic Back Cover |
| AG 25 | 4m Plug Connection |
| AG 26 | Vortex Inlet Needle |
| AG 27 | Flat Nozzle Set - FN 300 (All) |
| AG 28 | Compression Nut |
| AG 29 | Cascade |
| AG 30 | Paint Transfer Tube |
| AG 31 | Vortex Transfer Tube |
