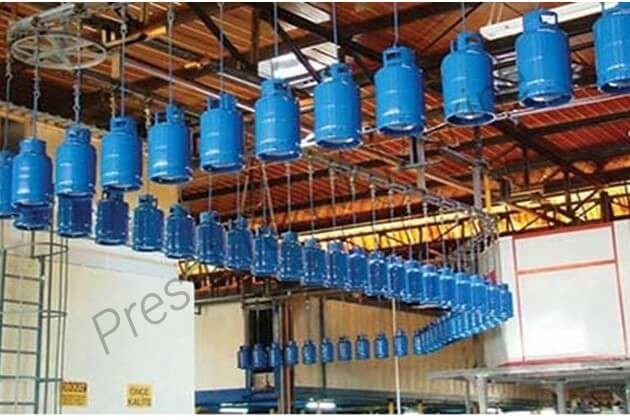

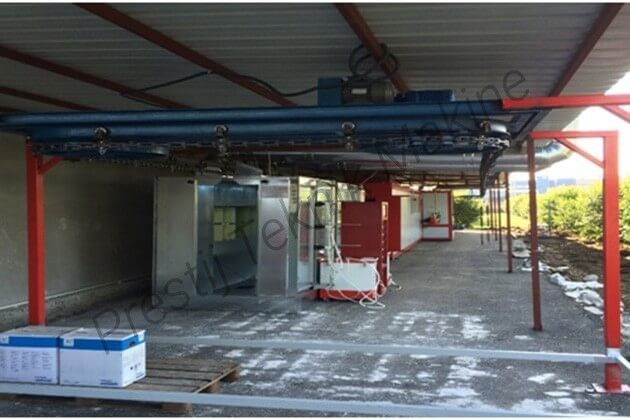

WEBB TYPE CONVEYOR SYSTEMS

Trolley Units

• Standard Bearing Segmented type
• Special Bearing Rivet Type.
• Nodular cast Iron and Forged Steel Carrying Arm.
• Track rollers are made of Steel
• Roller Bearing does not require lubrication for a long time.
• It is ready for first use as greased with 250 Degree Heat Resistant Gress.
• Depending on the project and application conditions, the bearings for the oven or transport are ordered exclusively.

3'' Forged steel chain

• It has been manufactured from special material as forged and heat treated.
• Material Structure : 1050-4140
• Pitch : 76,2.

4'' Forged steel chain

• It has been manufactured from special material as forged and heat treated.
• Material Structure: 1050-4140
• Pitch : 76,2.

3'' nodular cast iron chain

• It has been manufactured from special material as forged and heat treated.
• Material Structure : nodular cast iron
• Pitch: 76,2.

Caterpillar Drive Lugs

• It is specially manufactured from steel casting and forged steel and the working surfaces are hardened by induction.

Trolley Carrying capacity

• 3'' Trolley : 120 - 160 kg.
• 4'' Trolley : 200 - 280 kg.
• 4'' Double head Heavy Trolley : 450kg
